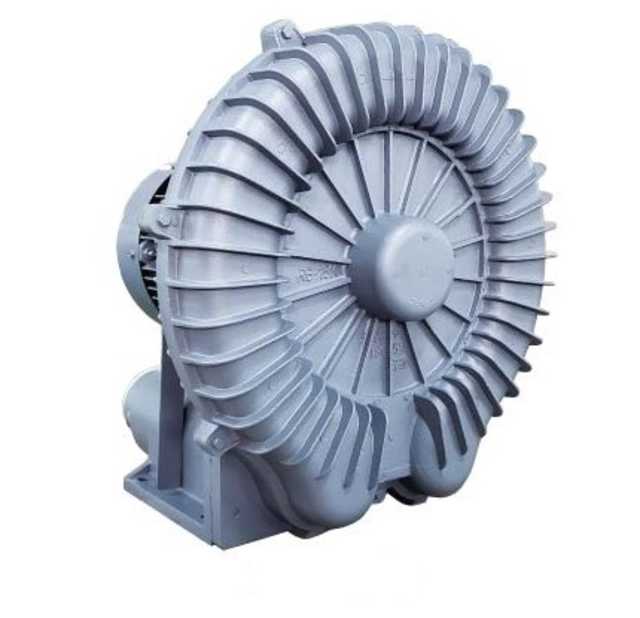

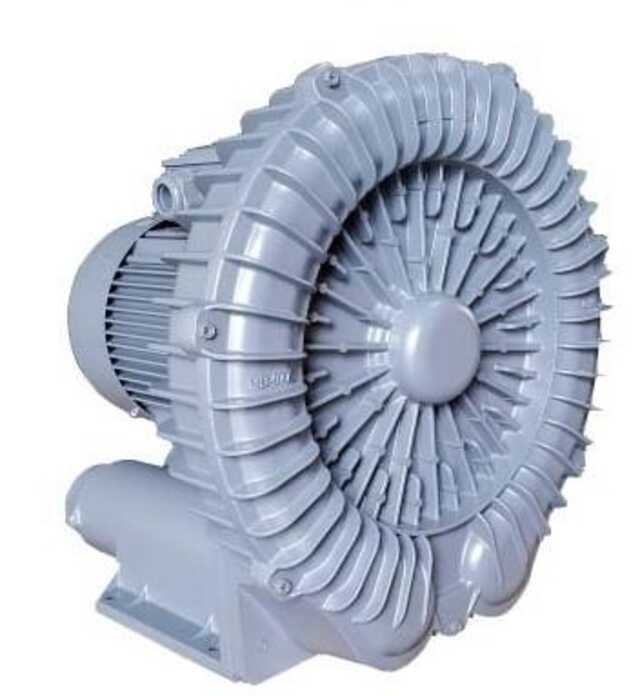

RB series Side Channel Blower(50Hz)
Model:RB Type (50HZ)
Frequency:50 Hz

Feature: Side Channel Blower are designed with practical regenerative theory.
Require no maintenance! No oily odor! Eternity life!

Features:
  • Low noise and vibration
    • Dynamic balancing minimizes vibration.
  • Dust-proofed shaft seal
    • Protects bearing from contaminated air stream and possible foreign particle damage.
  • High reliability
    • Directly connected motor shaft-impeller provides reliable, long term performance. No gears, belts, motor brushes or sliding blades to require periodic maintenance.
  • Space-efficient design
    • Unique design results in substantial airflows at moderate pressures in minimum space and weight.
  • Versatility
    • Easily throttled and changed from pressure to suction operation. May be mounted in a variety of fashiond.
  • Stable airflow
    • Centrifugal compressor design delivers smooth, stable airflow with no pulsations.
  • High-pressure airflow
    • Produces continuous high-pressure airflow. The Ring Blower is ideally suited to many industrial applications.
  • A policy of continuous improvement is followed, and the right to alter any published data without notice is reserved.
  • He maximent permissible temperature and the gas temperature at the inlet is 40°C
Applications

  •
    • Grain elevators.
    • Textile fiber collections
    • Paper industry
    • Sewage treatments
    • Cement manufacturing
    • Diesel burning
    • Pulp industry
    • Class manufacturing
    • Ice manufacturing
    • Tunnel ventilation
    • Fishery industry




Specification sheet

50Hz
Type



Phase



Power


(kW)
Voltage


(V)
Current


(A)
Vacuum/
Presure
(Rated)
(kPa)
Air Flow
(max)

m3/min
In/
outLet


Noise
Level

(dB)
Weight


(Kg)
RB-200S 1~ 0.2 220 1.5 6/7 0.6 PF 1" 65 8
RB-400S 1~ 0.4 220 2.5 9/10 1.3 PF 1¼" 65 11
RB-750S 1~ 0.75 220 5 13/16 2 PF 1½" 67 16
RB-022S 1~ 1.5 220 9 17/18 3.2 PF 2 70 26
RB-200 3~ 0.2 380 0.9 6/7 0.6 PF 1" 60 7.5
RB-400 3~ 0.4 380 1.3 9/10 1.3 PF 1¼" 65 10
RB-750 3~ 0.75 380 1.8 13/16 2 PF 1½" 67 15
RB-750-2 3~ 1.5 380 3.5 20/22 2 PF 1½" 67 19
RB-022 3~ 1.5 380 3.5 17/18 3.2 PF 2" 70 23
RB-023 3~ 2.2 380 5 18/21 3.2 PF 2" 70 26
RB-033 3~ 2.2 380 5 20/20 5 PF 2" 75 28
RB-035 3~ 3.7 380 7.5 22/29 5 PF 2" 75 36
RB-055 3~ 3.7 380 7.5 22/24 7 PF 2" 85 42
RB-057 3~ 5.5 380 11.5 26/30 7 PF 2" 85 52
RB-077 3~ 5.5 380 11.5 22/30 9 PF 2½" 88 57
RB-0710 3~ 7.5 380 15.5 23/30 9 PF 2½" 88 67
RB-110N 3~ 7.5 380 15.5 23/28 10 PF 2½" 85 68
RB-1515 3~ 11 380 21 20/18 19 PF 4" 95 120
RB-1520 3~ 15 380 28 26/24 19 PF 4" 95 130
RB-1525 3~ 19 380 35 32/30 19 PF 4" 95 140
Performance chart

Dimensions
